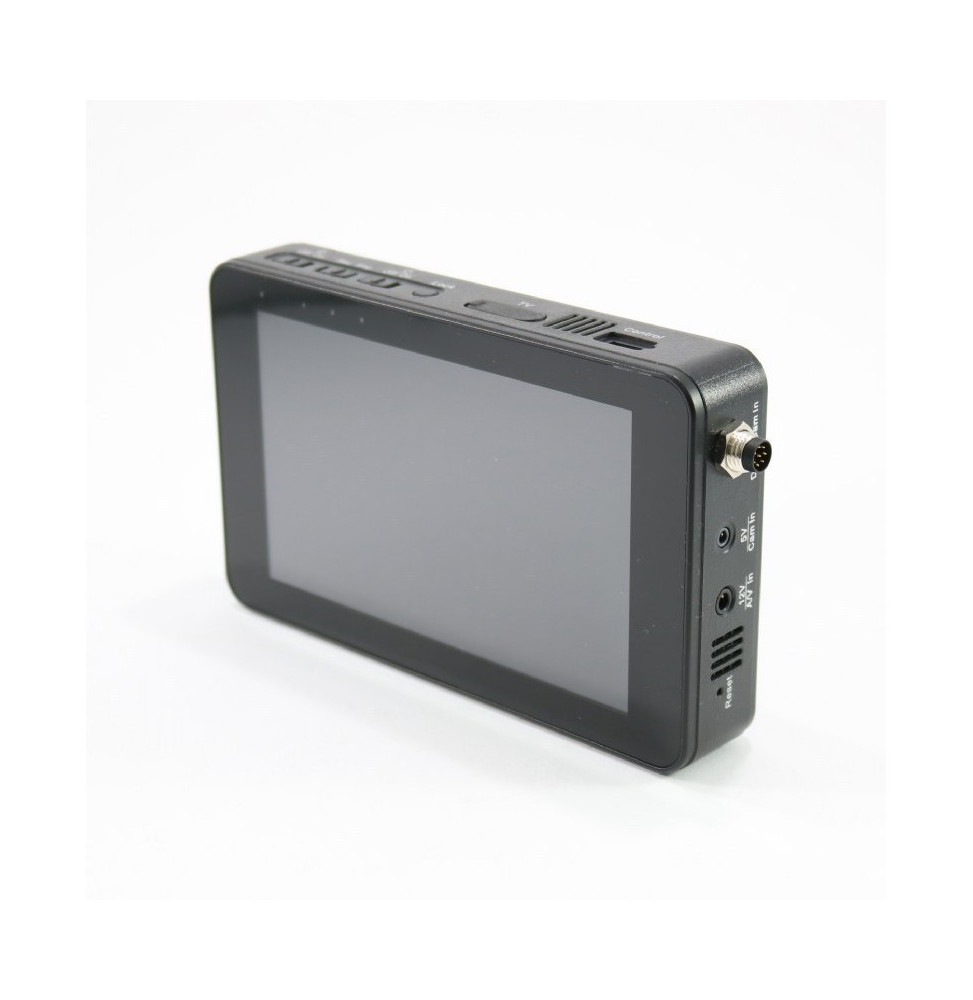

LAWMATE PV-1000 EVO3 FULL HD WI-FI RECORDER

The LawMate PV-1000EVO3 is a new Wi-Fi/IP DVR that features a 5-inch TFT LCD touchscreen, comes in Full HD 1080P, and offers a 1TB SATA HDD with an SD card.
The Wi-Fi/IP DVR PV-1000EVO3 can be connected to your Wi-Fi router and offers live surveillance anywhere in the world with cell phone access to your device.

It offers dual audio A/V output for analog cameras (BU-19) with 5 V and 12 V. It also has the ability of a digital camera with a new reinforced locking plug (military standard). It is compatible with the Lawmate CMD-BU20LX digital camera.
And for all those who work in the media, there is also an HDMI TV output option available.

The DVR is equipped with Wi-Fi connectivity which means you can download the PV Cam app to your smartphone and view life or download Video and Snapshots, as well as change your device settings via your smartphone.

Recording modes are Standard and Motion Detection. The PV-1000 EVO3 supports both NTSC (720*480@30 FPS) and PAL (720*576@25 FPS) standards. With integrated 1TB memory, you have support for a 32GB SD card that can be magnified up to 128GB if you format the card to FAT 32 exFAT.


PV-1000 EVO3 specifications:

Wi-Fi/IP Enabled
Integrated 1TB
SATA HDD and SD Card Support Features 5 inch 800*480 TFT COLOR
LCD Recording resolution up to 1080p
Digital camera input
Support for 5V and 12V
analog cameras Compatible with Lawmate CMD-BU20LX
Digital Camera Compatible with Lawmate BU-19
Analog Camera Integrated Battery 4400ma BA-4400
Multiple resolutions and customizable FPS: @ 25 PAL and @ 30FPS NTSC
Standard recording mode and motion detection.


Full specifications of the PV-1000 EVO3

Item No.: PV-1000 EVO3
Display: 5"RGB 800*480 TFT COLOR LCD, G-Sensor
LCD Touch Panel: Capacitive Touch Panel
Algorithm: H.264, JPEG
File Format: Mp4
Video Input: Digital Camera Signal Input 1080P BT 656
NTSC/PAL Automatic Detection (2.5)
NTSC/PAL Auto Detection (3.5)
Video Recording Mode: Standard/Motion Detection
Mode Max. Resolution: 1080P (1920*1080)
Number of images per second: 30 fps and 25 fps
Memory type: Built-in 2.5"SATA HDD and 1 TB SD card (supports up to 32 GB / 128 GB (FAT 32 exFAT))DC5V
on camera: DC5V 250mA max. (Protection against overcurrent)
DC12V to Camera: DC12 V 150mA Max (Overcurrent Protection)
HDMI Output: HDMI Image
Output PC Interface: USB 2.0
Image Quality (Bit Rate): Standard 720*576@25 FPS (PAL) 720*480@30 FPS (NTSC), 1080P (12 Mbps)
Wi-Fi: Built-in Wi-Fi Module/802.11B/G/N. Supports WPA2-PSK RF remote control encryption

Data table: YYYY/MM/DD(America), HH, MM, SS (United Kingdom)
Frame counter designation: Yes
Power consumption: Recording: 1.5 A (Wi-Fi off)
Charging current: 1,5A
Battery type: DC 3.7 V/ 4400 mA lithium battery
Battery life: 170 min (BU-19 PAL 5V) / 120 min (BU-19 12V) / 120 min (CMD-BU20LX) for hard drive.

Main features:
Built-in Wi-Fi Module - Once you've established a connection between your smartphone and the PV-1000 EVO3, you can remotely change device settings or download the necessary files to your phone. This is especially useful if you have to remotely format the SD card regardless of the reason. Also, you can follow the live broadcast and record footage.

5" touchscreen - although the device has the ability to track a live feed through your smartphone, you have an additional option to track the feed on the LCD screen and adjust settings (NTSC, PAL, resolution, FPS, timestamp, etc.).

Support for 5V and 12V analog and 3.7V digital cameras - Lawmate PV-1000 EVO3 supports and powers analog and digital cameras. The recorder includes a 5V analog and digital plug and a 12.2-inch 5V plug. It is compatible with the Lawmate CMD-BU20LX digital camera and the BU-19 analog camera. The PV-1000 EVO3 is compatible with a wide range of analog cameras and powers them via 5V and 12V cameras; DC5V 250mA Max and DC12V 150mA Max (overcurrent protection).

Compatible with cable controller - operate without touching the DVR and operate the PV-1000 EVO3 at a distance of up to 10 meters. The controls follow Lawmate's familiar user experience - with design - Power Supply / Wi-Fi / Recording - design.


How to use the PV-1000 EVO3:

Scan the QR code on the DVR via the PV CAM app Turn on the DVR and connect the camera to the DVR.
If you want to insert an SD card, the DVR does not need it to work because it has an internal hard drive.
Press the Wi-Fi switch,
Enter the router password,
Connect the DVR to your smartphone via the PV Cam app,
Now you can watch a live image, download videos, and photos, and change settings via your smartphone.
